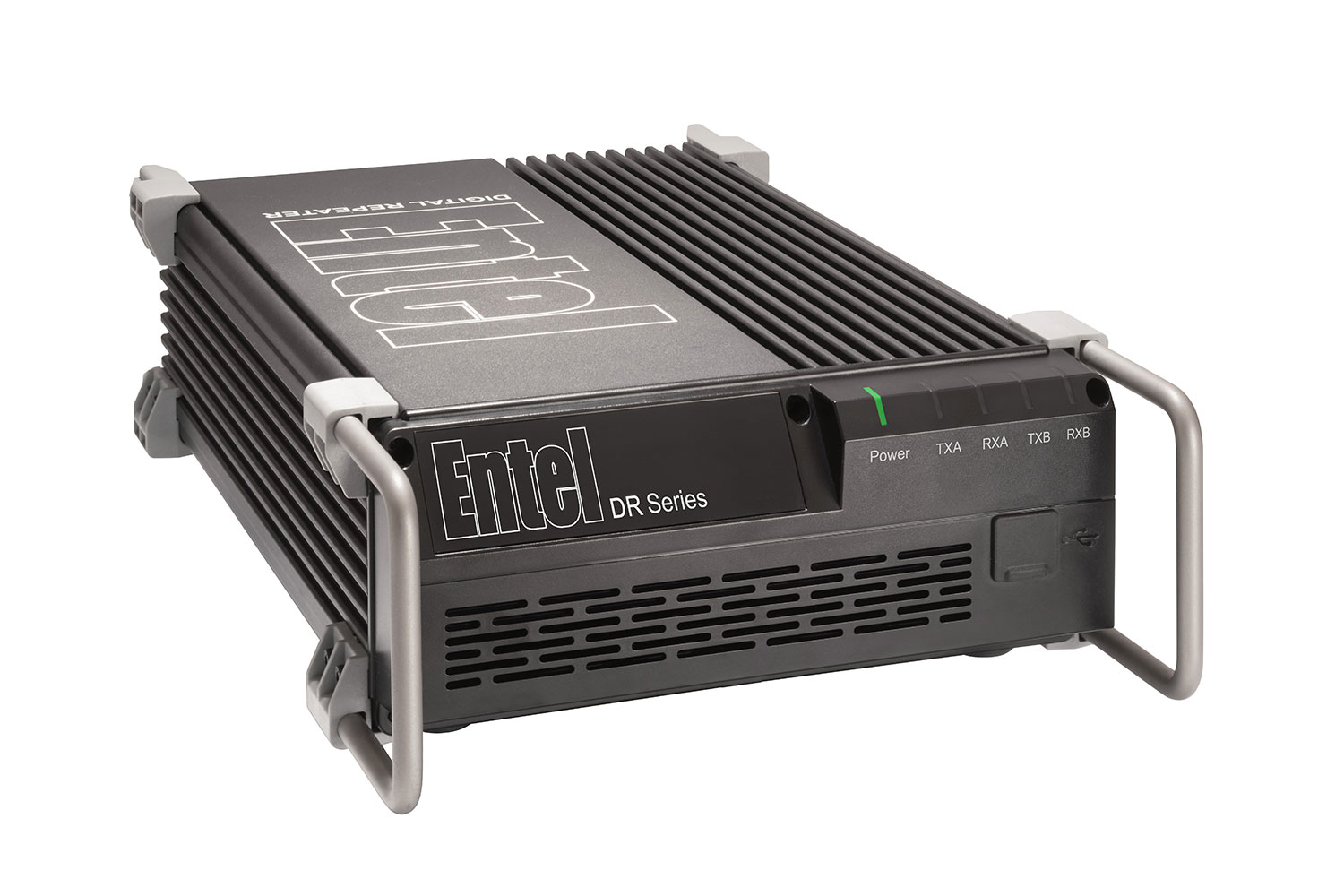

Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater (DR482)

Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater

Price range: £1,500.00 through £2,525.00 ex. VAT

Clear
Get A Quote Ask A Question

SKU: DR482

Category:

Description

The Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater (DR482) is in stock.

The Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater is a compact, durable, and versatile UHF repeater that provides a 100% transmit duty cycle. It is engineered for challenging conditions both on land and at sea, merging sturdy construction with continuous-duty capabilities in a compact design.

A significant distinguishing feature of the DR482 is its integrated architecture. This unit includes an internal AC power supply (complete with a rapid charger for external lead-acid battery backup) and an optional internal duplexer, which simplifies installation and eliminates the need for cumbersome external hardware typically associated with compact repeater solutions.

PLEASE NOTE: The Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater (DR482) comes in 4 options.

Select the option you require from the drop-down box above:

Option 1 – No Internal Duplexer or Single UHF Antenna System – Current price of £1,500

Option 2 – Includes Internal Duplexer, no Single UHF Antenna System +£275.00

Option 3 – No Internal Duplexer, with Single UHF Antenna System +£750.00

Option 4 – Includes Internal Duplexer and Single UHF Antenna System +£1,025.00



The Single UHF Antenna System includes:
Part number Description Qty
CAT2006 UHF folded dipole antenna c/w 90-deg clamp 1
PLUGNWF N-Type plug for Westflex 103 2
LD-103 Westflex 103 Cable x 100m 1



The Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater Features include:

Exceptionally Durable – The development team at Entel understands that durability and reliability are interconnected. Enclosed in a highly compact casing with a minimal thermal footprint, the DR482 is designed to excel in the harshest conditions. It has undergone testing for thermal shock, vibration, impact shock, solar radiation, and ingress. Coupled with Entel’s stringent life-cycle testing program, users can anticipate many years of seamless operation, even in the most challenging environments.

Integrated Power Supply – The repeater comes equipped with a built-in AC Mains power supply that can charge a 12V backup battery.

Built-in Safeguards – The DR482 is safeguarded against antenna faults, overheating, interference signals, and fluctuations in AC mains and DC supply voltage.

Three Installation Options – The DR482 can be installed on a desk, in a 19” rack (where two repeaters can fit side-by-side on a 3U rack tray), or mounted on a wall using the optional wall mounting kit.

User-Friendly Programming – Our distinctive and easy-to-use Windows® application eliminates the need to return a repeater to your dealer for reprogramming or updates. With this user-friendly app, you can effortlessly transfer programming data provided by your Entel dealer, apply software updates, or add new features to your Entel DR482 repeater independently.

Three Power Supply Configurations – The DR482 repeater can operate in three distinct modes:
• AC Mains only
• 12V DC only
• AC Mains with Battery Backup

Optional Internal Duplexer – The DR482 repeater can be provided with either separate Tx and Rx connectors for dual-antenna operation or an external duplexer, or it can come with an internal duplexer for single antenna use.

Mixed Mode Functionality – To accommodate legacy analogue radios, the repeater can be set up to automatically switch between DMR Digital and Analogue modes.

Office Phone Shop stock a wide range of Entel products, including the Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater. All products come with a full warranty and can be delivered worldwide.

By supplying current and legacy business telephone system parts to small, medium and large companies in over 125 countries, we have built up a reputation for excellent quality products and customer service, good lead times and a wide range of stock availability.

We have 1000s of products in our warehouse. So, if you cannot find the parts you are looking for, contact us and we will find them for you.

Please quote Entel DR482 UHF Digital/Analogue Mixed-Mode Repeater or DR482 when contacting us about this product.

Additional information

Options

Option 1 – No Internal Duplexer or Single UHF Antenna System, Option 2 – Includes Internal Duplexer, no Single UHF Antenna System, Option 3 – No Internal Duplexer, with Single UHF Antenna System, Option 4 – Includes Internal Duplexer and Single UHF Antenna System
  • Digital, Analogue & Mixed modes
  • User-friendly programming application
  • Integrated mains power supply
  • Built-in battery charger for mains failure
  • Software upgradeable for additional features/updates
  • 100% transmit duty cycle at 25 Watts
  • Optional internal duplexer
  • Flexible mounting options
